Polycarbonate Roof Sheeting
Polycarbonate Translucent Roof Sheeting is the strongest plastic material in the world, it is 250 times stronger than glass of the same thickness and is EXTREMELY FLEXIBLE and durable.
This co-extruded material is available in a 0.8mm, 1mm and 1.25mm thickness.
To download our 25 Year Warranty

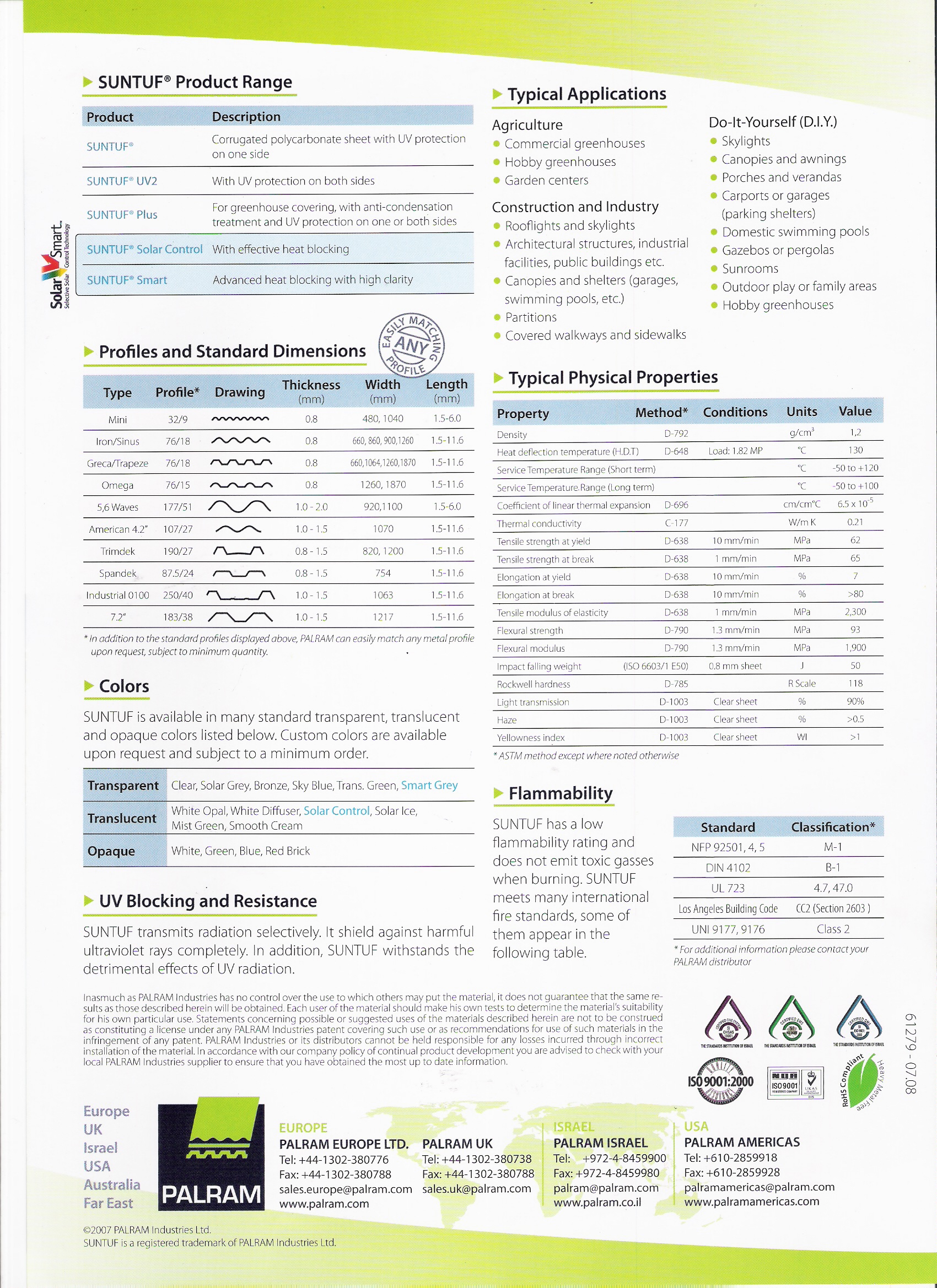

To download our PC Technical
Colour Chart
| Colour | Light Transmission | Heat Transmission |
|---|---|---|
| CLEAR | 93% | 101% |
| GREEN | 75% | 75% |
| BLUE | 75% | 75% |
| BRONZE | 75% | 75% |
| DIFFUSER | 85% | 85% |
| OPAL | 35% | 30% |
| HEAT STOP | 85% | 50% |
- Rust Proof
- Hail Proof
- Does not fade or crack
- Highest fire rating in the world (Self Extinguishing)
- Flexible
- UV protected, 1mm and 1.25mm is UV PROTECTED ON BOTH SIDES 0.8mm is UV1 (Protected on one side only)
- Recommended Purlin spacing for 0.8mm is 0.8m’s apart, 1mm is up to 1.2m’s apart and 1.25mm is up to 1.8m apart
- Recommended Purlin spacing for 1mm is up to 1.2m apart
- Recommended Purlin spacing for 1.25mm is up to 1.8m apart
- 1mm and 1.25mm cut to any length up to 11.8m
- Virgin Resin
Polycarbonate Profiled Sheeting
| Material | mm | Colour | Cover Width |
|---|---|---|---|
| IBR UV1 | 0.8 | Clear, Opal, Bronze,
Blue, Green, Solar | 686mm |
| IBR UV2 | 1mm | Clear, Opal, Bronze,
Blue, Green, Solar, Diffused | 686mm |
| IBR UV2 | 1.25mm | Clear, Opal, Bronze,
Diffussed, Solar | 686mm |
| Corrugated UV1 | 0.8mm | Clear, Opal, Bronze, | 762mm |
| Corrugated UV2 | 1.0mm | Clear, Opal, Bronze, Solar | 762mm |
| Kliplok 700 UV2 | 1.2mm | Clear and Opal | 705mm |
| Big 6 UV2 | 1.25mm | Clear and Opal | 875mm |
| Grecca UV1 | 0.8mm | Bronze | 755mm |
| Grecca UV1 | 1.0mm | Clear, Opal. Bronze, Green | 755mm |
| Widespan UV2 | 1mm | Clear, Opal, Diffused | 762mm |
| Widespan UV2 | 1.25mm | Clear, Opal, Diffused | 762mm |
| Chairmats | each | Clear: 0.920 x 1.220 |
- Rust Proof
- Hail Proof
- Does not fade or crack
- Highest fire rating in the world (Self Extinguishing)
- Flexible
- UV protected, 1mm and 1.25mm is UV PROTECTED ON BOTH SIDES 0.8mm is UV1 (Protected on one side only)
- Recommended Purlin spacing for 0.8mm is 0.8m’s apart, 1mm is up to 1.2m’s apart and 1.25mm is up to 1.8m apart
- Recommended Purlin spacing for 1mm is up to 1.2m apart
- Recommended Purlin spacing for 1.25mm is up to 1.8m apart
- 1mm and 1.25mm cut to any length up to 11.8m
- Virgin Resin

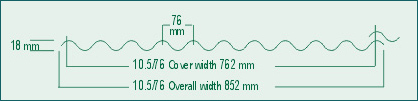

Corrugated

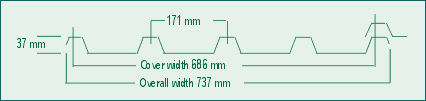

IBR
Nurib / Wide Span

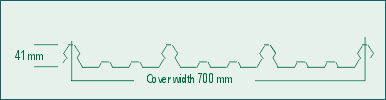

Klip Lock 700

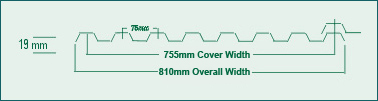

Grecca

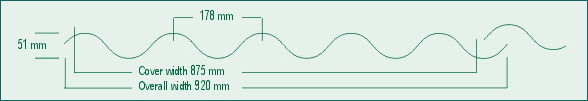

Big Six
To download DIY Heat-Blocking for Polycarbonate Sheets
To download the Rooflights Technical Guide
